Genuin FS 1

Produktion 2004-2014

Produced 2004-2014

Produzione 2004-2014

Goosebumps: the top model of the Genuin Series.
Shines with unbelievable transparency and gorgeousness.

Gänsehaut pur: das Spitzenmodell der Genuin-Serie
glänzt mit unglaublicher Offenheit, Klangfarbenpracht und Fülle.

Emozionante: il modello top della serie Genuin.
Brilla per trasparenza, ricchezza e pienezza.


Alt image
Blumenhofer Acoustics Serie Genuin FS 1 Indian Apple Tree
Top Model of the Genuin Series.

Open and powerful delivers the whole colors of music and brings you to the live performance in your house!

The woofer is a 16” TAD-Woofer and this is the only component not delivered by us.
The position of the Horn might be adjusted at need to reach the perfect
time alignment on the listening spot.

Genuin FS 1 – The Protagonist - enjoy the Genuin sound.

Words of the press

Pressestimmen

Dice la stampa

Stereoplay.de - Article


Then it was for all participants really emotion loaded to reach levels that in the 30-years experience of Stereoplay history, have never been appreciated so homogeneous and smooth.
Even the Horn skeptics in the staff started to joyfully pump up the volume.
Each discussion about dynamic limits was with this loudspeaker useless: the easiness of reproduction was simply outstanding.

Suono.it - Article


The chiaroscuro and the perspective feeling was an inebriant completion of the sonic field.
It was marvelous the deepness feeling with the a gorgeous scene description.
These Blumenhofer are more noble and enjoyably audiophile than [Omissis], without loosing the dynamic impact even at high volumes

Specifications of the Genuin FS 1

Spezifikationen der Genuin FS 1

Specifiche della Genuin FS 1

High efficiency
2-Ways loudspeaker

Cabinet


Front ported Bass-Reflex
• 25mm Birch plywood
• Front panel of 50mm Birch plywood
• Resonance and flow optimized bass reflex tunnel
• Separate chamber for the crossover
• High complex internal bracing
• A.R.I.S.© Feet by Aktyna

Components


• 1,4” Compression Driver with Titan membrane
• 16” TAD-Woofer
• Gold plated tellurium copper terminals

Features


• 2-1dB-steps level adjustment for the horn
• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
Tube Friendly
Time alignment to the listening spot
• 10 years Warranty

Technical data of the Genuin FS 1

Technische Daten der Genuin FS 1

Dati tecnici della Genuin FS 1

Genuin FS 1
MaterialMaterialMateriale:Birch plywoodBirke MultiplexMultistrato di betulla
ThicknessMaterialdickeSpessore:25mm / 1"
Internal BracingVerstrebungIrrigidimento:High complex internal bracingHoch komplexe interne VerstrebungIrrigidimento strutturale interno
Cross over chamberKammer für FrequenzweicheVolume separato per filtro:YesJaSi
Frequency rangeFrequenzgangRisposta in frequenza:36Hz - 20kHz ± 2dB
Bass CabinetBass GehäuseCabinet dei bassi:Bass Reflex
PortingBass ReflexCanaleFrontNach vorneAnteriore
WooferTiefmitteltönerWoofer:380mm / 16" TAD
MaterialMaterialMateriale:PaperPapierCarta
Cross over frequencyÜbergangsfrequenzFrequenza di taglio:850 Hz
MidhighMittelhochtönerMedioalti:Compression driverKompressionstreiberDriver a compressione
Horn ThroatHornDiametro tromba:1,4"
Membrane dimensionsMembranendimensionDimensione Membrana:75mm / 3"
MaterialMaterialMateriale: TitaniumTitanTitanio
Max power inputBelastbarkeitPotenza massima (RMS):250 W RMS
EfficiencyWirkungsgradEfficienza:96 dB
ImpedanceImpedanzImpedenza:8 Ohm
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza:YesJaSi
TerminalAnschlussfeldTerminaliBi-Wiring
MaterialMaterialMateriale:Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro
FeetsFüßePiedi:A.R.I.S. by Aktyna
DimensionsMaßenDimensioni:1157 x 450 x 565 mm
45,5 x 17,7 x 22,25 in
WeightGewichtPeso:80 kg
Packaging dimensionsVerpackungsmaßenDimensioni imballate:-
Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone:1
Packaging weightVerpackungsgewichtPeso imballate:110 kg
Center LoudspeakersCenter LautsprecherDiffusori centrali:Genuin CS 1
Center 20

Dimensions of the Genuin FS 1

Abmessungen der Genuin FS 1

Ingombri della Genuin FS 1

Options of the Genuin FS 1

Optionen der Genuin FS 1

Opzioni della Genuin FS 1

In our workshop we can offer all true-wood veneers.
Standard are Walnut and Cherry.
Here You can find some non exhaustive samples of the veneers.
As an option is matt lacquering possible as well.

Picture Gallery of the Genuin FS 1

Fotos der Genuin FS 1

Immagini della Genuin FS 1

Home Cinema Components for the Genuin FS 1

Heimkino Komponenten für die Genuin FS 1

Componenti Home Cinema per la Genuin FS 1

Note:

Anmerkung:

Nota:

Note:

Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.

Reviews
of the Genuin FS 1

Reviews
der Genuin FS 1

Tests
della Genuin FS 1


    Alt image

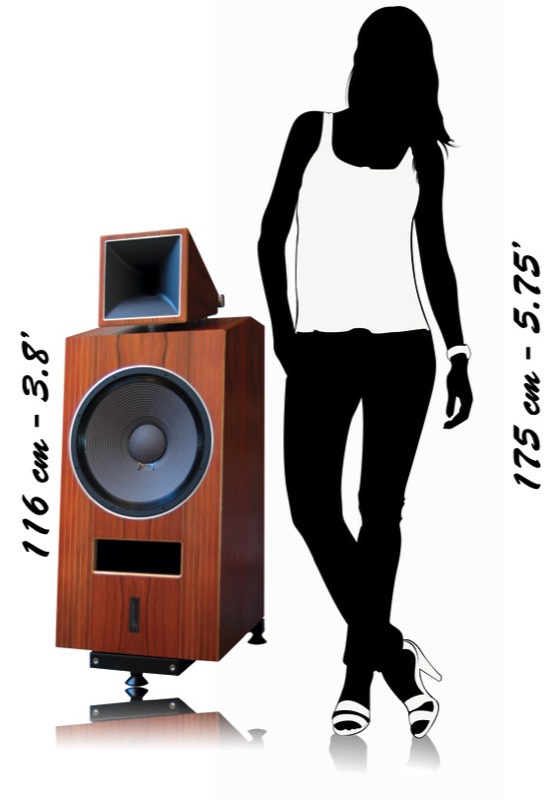

    Relative Dimensions Genuin FS 1
