Bass Impedance Correction Curves

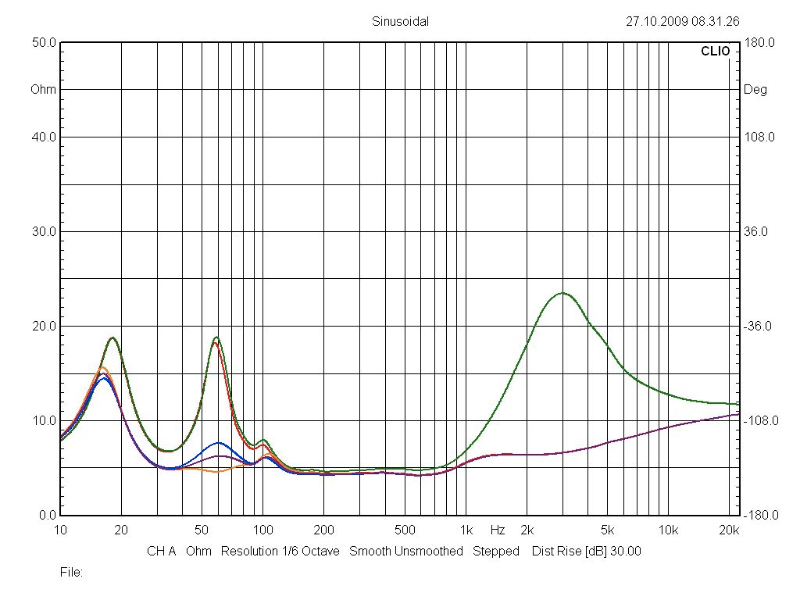

The impedance curve of the big Fun 20 will be the example to explain the impedance linearization module:
- Green: Impedance without linearization,
- Orange: Impedance with cross over impedance linearization but without Low frequency-impedance linearization
- Blue: low frequency impedance linearization put on Low
- Purple: low frequency impedance linearization put on Medium
- Yellow: low frequency impedance linearization put on High
The average Tube amplifiers, in our opinion, need a flat impedance load to get the best sound out of it. The flat impedance allows a more homogeneous sound along the whole frequency spectrum: all our speaker of the big Fun, Genuin and Gioia series have a excludable impedance linearization for the cross-over frequency.

The cross-over impedance linearization is in our experience useful on all tube amplifiers (some people prefer to keep it switched off - question of taste and overall system).
The Bass impedance linearization leads to higher definition and better control in the low frequencies. The fact is that only rare tube and hybrid power amplifier need it, suggests us not to stress the construction to achieve this result.

In fact, each improvement is only useful, as long as the drawback it brings, is smaller than the problem it corrects

Theory behind

Die Theorie

La teoria

Stacks Image 4414

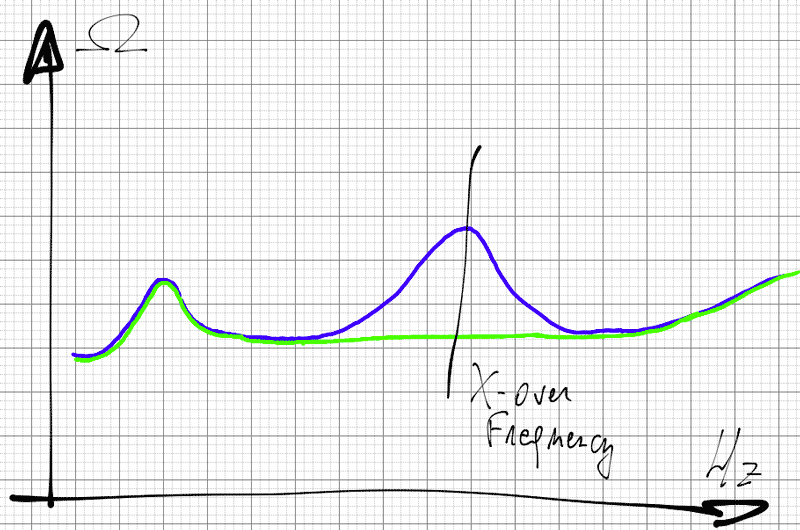

We develop our loudspeakers keeping in mind as well to get the highest linearity in the overall impedance. But all loudspeakers have a complex curve that describes the impedance depending on the frequency (see rough drawing up here). According to the IEC standard, saying that a loudspeaker does have 8 Ω (ohms) impedance, means that the impedance of that loudspeaker does not descend below 6,4 Ω. It does not say anything about the highest possible value that the impedance might reach.


-----------Start Quote from ePanorma.net----------- Read more here about this thema

There is a convention to the use of the term "nominal impedance", and if the impedance over the majority of the bandwidth, specifically covering the range in spectrum where majority of the musical spectral power occurs, it's 8 ohms. A single number cannot tell all there is to tell about an impedance that varies with frequency. You must keep in mind that 'nominal impedance' is not defined in IEC. Indeed, the electronics industry was advised when the Trade Descriptions Act was introduced, that the word 'nominal' should no longer be used in specifications. That is why the IEC concept of 'rated value' is so useful. There is a very detailed definition and explanation of this term in IEC60268-2. The IEC standard (IEC60268-3) allows any "increase" above the rated value, but limits the "decrease". The standard does not allow the impedance to fall below the 80 % of the nominal value at any frequency, including DC.

-----------End Quote from ePanorma.net-----------


Saying that there is a nominal resistance of 8 Ω, does not mean that the impedance is flat 8Ω over the whole frequency spectrum.
One critical range is at the cross over frequency, where normally there is a peak (blue curve in the drawing). Therefore we developed and implemented in our loudspeakers a switchable impedance linearization for the cross over frequency. This flattens the impedance curve in the critical range (green curve in the drawing).
