big Fun 17
Produktion 2009-2016
Produced 2009-2016
Produzione 2009-2016




Bass horn Power: compact way with extraordinary musicality and powerful sound.
Bass Horn-Power: kompakte Erscheinung mit äußerst natürlichem und kraftvollen Sound.
La potenza del basso a tromba: anche in forma compatta estrema naturalezza e possanza
![]() ![]() |
Special and unique, the big Fun 17 is the only loudspeaker with compression chamber bass horn in relatively compact dimensions. The feelings, which is able to deliver, are really involving and put the listener in the center of the happening, in front of the orchestra solid in its holography. Come a step nearer to reality with the big Fun 17: have Fun! |
Words of the press
Pressestimmen
Dice la stampa
Stereoplay.de - Article
They play absolutely transparent and without any fatigue.Speed changes and melodies are served, they are far fuller emotions than with normal mainstream Loudspeakers.
Exceptional music fun.
All in all is the big Fun 17 a trustworthy companion, very simple to combine.
Stereo.de - Article
Presents himself vital, open and emotional.The bass is extraordinary stable, fast and really defined. Acts really coherent.
The mid high range takes care for long time listening properties.
A real example of a well build loudspeaker with world class timing.
Superb.
Image HiFi - Article
This beauty is not choosy at all.Stages are believably big described and even in the center part good covered.
Typical for a really good horn: confident, direct and amazing.
Fedeltà del Suono - Article
While listening I found myself smiling from Joy.An incredible easiness in the sound production: naturally won above the rest.
In my humble opinion these loudspeakers do not have competitors.
The superiority is really embodied.
I did not test these loudspeakers: I've listened to music. I'd like this to happen more often.
Specifications of the big Fun 17
Spezifikationen der big Fun 17
Specifiche della big Fun 17
• High efficiency
• 2-Ways loudspeaker
• Compression Chamber Bass-Horn
• 18mm Birch plywood
• Resonance and flow optimized bass horn
• Separate chamber for the crossover
• High complex internal bracing
• 1" Compression Driver with Mylar membrane
• 17cm (6") Woofer with P2C® Membran
• Gold plated tellurium copper terminals
• Single-wiring-terminals
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
• Tube Friendly
• 10 years Warranty
• 2-Ways loudspeaker
Cabinet
• Compression Chamber Bass-Horn
• 18mm Birch plywood
• Resonance and flow optimized bass horn
• Separate chamber for the crossover
• High complex internal bracing
Components
• 1" Compression Driver with Mylar membrane
• 17cm (6") Woofer with P2C® Membran
• Gold plated tellurium copper terminals
Features
• Single-wiring-terminals
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
• Tube Friendly
• 10 years Warranty
Technical data of the big Fun 17
Technische Daten der big Fun 17
Dati tecnici della big Fun 17
big Fun 17 | |||||
---|---|---|---|---|---|
MaterialMaterialMateriale: | Birch plywoodBirke MultiplexMultistrato di betulla | ||||
ThicknessMaterialdickeSpessore: | 18mm / 0,75" | ||||
Internal BracingVerstrebungIrrigidimento: | Structural bracing interactionStrukturelle InteraktionInterazione strutturale | ||||
Cross over chamberKammer für FrequenzweicheVolume separato per filtro: | YesJaSi | ||||
Frequency rangeFrequenzgangRisposta in frequenza: | 40Hz - 20kHz ± 2dB | ||||
Bass CabinetBass GehäuseCabinet dei bassi: | Bass hornBasshornBasso a tromba | ||||
Horn typHorn TypTipo di tromba | Compression chamberDruckkammerCon camera di compressione | ||||
Horn loadHorn RichtungCarico a tromba | FloorZum BodenA pavimento | ||||
WooferTiefmitteltönerWoofer: | 170mm / 6,5" | ||||
MaterialMaterialMateriale: | Peek-Carbon P2C® Sandwich | ||||
Cross over frequencyÜbergangsfrequenzFrequenza di taglio: | 1500 Hz | ||||
MidhighMittelhochtönerMedioalti: | Compression driverKompressionstreiberDriver a compressione | ||||
Horn ThroatHornDiametro tromba: | 1" | ||||
Membrane dimensionsMembranendimensionDimensione Membrana: | 35mm / 1,4" | ||||
MaterialMaterialMateriale: | Mylar | ||||
Max power inputBelastbarkeitPotenza massima (RMS): | 100 W RMS | ||||
EfficiencyWirkungsgradEfficienza: | 91 dB | ||||
ImpedanceImpedanzImpedenza: | 8 Ohm | ||||
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza: | YesJaSi | ||||
TerminalAnschlussfeldTerminali | Single-Wiring | ||||
MaterialMaterialMateriale: | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | ||||
FeetsFüßePiedi: | Adjustable SpykesRegelbare SpykesSpykes regolabili | ||||
DimensionsMaßenDimensioni: | 910 x 270 x 472 mm 36 x 10,5 x 18,5 in | ||||
WeightGewichtPeso: | 25 kg | ||||
Packaging dimensionsVerpackungsmaßenDimensioni imballate: | 105 x 60 x 38 cm | ||||
Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone: | 1 | ||||
Packaging weightVerpackungsgewichtPeso imballate: | 28 kg | ||||
Center LoudspeakersCenter LautsprecherDiffusori centrali: | |||||
Center 17 | |||||
Center 15 |

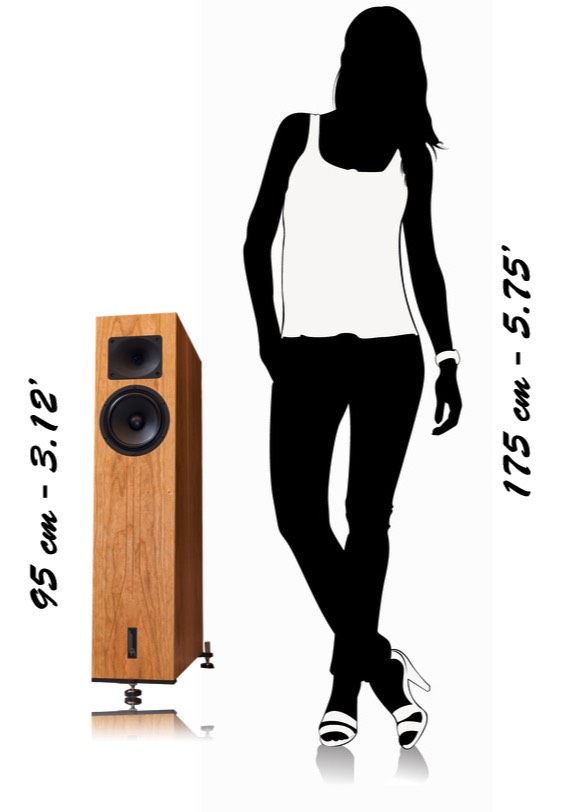

Dimensions of the big Fun 17
Abmessungen der big Fun 17
Ingombri della big Fun 17
Options of the big Fun 17
Optionen der big Fun 17
Opzioni della big Fun 17
In our workshop we can offer all true-wood veneers.
Standard are Walnut and Cherry.
Here You can find some non exhaustive samples of the veneers.
As an option is matt lacquering possible as well.
Standard are Walnut and Cherry.
Here You can find some non exhaustive samples of the veneers.
As an option is matt lacquering possible as well.
Picture Gallery of the big Fun 17
Fotos der big Fun 17
Immagini della big Fun 17
Home Cinema Components for the big Fun 17
Heimkino Komponenten für die big Fun 17
Componenti Home Cinema per la big Fun 17
Note:
Anmerkung:
Nota:
Note:
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
The hand painted
big Fun 17
Die Handgemalene
big Fun 17
La big Fun 17
dipinta a mano
Reviews
of the big Fun 17
Reviews
der big Fun 17
Tests
della big Fun 17
