Genuin FS 1 MK 2
Harmonic construction and simplification with a gorgeous 16in-38cm woofer.
The new Genuin FS 1 MK 2 is a little bit more than a simple face lift of the 10 older Genuin FS 1. It is a big step forward in terms of construction philosophy and sound generation. This loudspeaker bears the technology introduced with the Gran Gioia and the Genuin FS 2: the Harmonic Construction and the floor ported bass reflex tunnel.
This 2 technologies instead of suppressing all unwanted vibrations, harmonically directs them in a studied way.
And of course complete new revised drivers, tuned for speed and optimised for efficiency and stability.
This 2 technologies instead of suppressing all unwanted vibrations, harmonically directs them in a studied way.
And of course complete new revised drivers, tuned for speed and optimised for efficiency and stability.
Specifications
• High efficiency
• 2-Ways loudspeaker
• Floor ported Bass-Reflex
• Harmonic construction
• 1,4” Compression Driver with Titan membrane
• 16” Paper-Woofer
• Gold plated tellurium copper terminals
• 2-1dB-steps level adjustment for the horn
• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearisation for the crossover frequency
• Flat impedance curve
• Tube Friendly
• 10 years Warranty
• 2-Ways loudspeaker
Cabinet
• Floor ported Bass-Reflex
• Harmonic construction
Components
• 1,4” Compression Driver with Titan membrane
• 16” Paper-Woofer
• Gold plated tellurium copper terminals
Features
• 2-1dB-steps level adjustment for the horn
• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearisation for the crossover frequency
• Flat impedance curve
• Tube Friendly
• 10 years Warranty
Technical Data
| Genuin FS 1 MK 2 | Genuin FS 2 | Genuin FS 3 MK 2 | ||
|---|---|---|---|---|
| MaterialMaterialMateriale | Birch plywoodBirke MultiplexMultistrato di betulla | Birch plywoodBirke MultiplexMultistrato di betulla | Birch plywoodBirke MultiplexMultistrato di betulla | |
| ThicknessMaterialdickeSpessore | 18mm / 0,75" | 18mm / 0,75" | 18mm / 0,75" | |
| Internal BracingVerstrebungIrrigidimento | Structural bracing interactionStrukturelle interaktionInterazione strutturale | Structural bracing interactionStrukturelle interaktionInterazione strutturale | Structural bracing interactionStrukturelle interaktionInterazione strutturale | |
| Cross over chamberKammer für FrequenzweicheVolume separato per filtro | No | No | No | |
| Frequency rangeFrequenzgangRisposta in frequenza | 36Hz - 20kHz ± 2dB | 36Hz - 20kHz ± 2dB | 40Hz - 20kHz ± 2dB | |
| Bass CabinetBass GehäuseCabinet dei bassi | Harmonic Bass Reflex | Harmonic Bass Reflex | Harmonic Bass Reflex | |
| PortingBass ReflexCanale | FloorZum BodenA pavimento | FloorZum BodenA pavimento | FloorZum BodenA pavimento | |
| WooferTiefmitteltönerWoofer | 380mm / 16" | 300mm / 12" | 250mm / 10" | |
| MaterialMaterialMateriale | PaperPapierCarta | PaperPapierCarta | Paper P2F® SandwichPapier P2F® SandwichCarta Sandwich P2F® | |
| Cross over frequencyÜbergangsfrequenzFrequenza di taglio | 850 Hz | 1150 Hz | 1200 Hz | |
| MidhighMittelhochtönerMedioalti | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | |
| Horn ThroatHornDiametro tromba | 1,4" | 1,4" | 1" | |
| Membrane dimensionsMembranendimensionDimensione Membrana | 75mm / 3" | 75mm / 3" | 44mm / 1,75" | |
| MaterialMaterialMateriale | TitaniumTitanTitanio | TitaniumTitanTitanio | Mylar | |
| Max power inputBelastbarkeitPotenza massima (RMS) | 150 W RMS | 150 W RMS | 150 W RMS | |
| EfficiencyWirkungsgradEfficienza | 96 dB | 94 dB | 92 dB | |
| ImpedanceImpedanzImpedenza | 8 Ohm | 8 Ohm | 8 Ohm | |
| Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza | YesJaSi | YesJaSi | YesJaSi | |
| TerminalAnschlussfeldTerminali | Bi-Amping | Bi-Amping | Bi-Amping | |
| MaterialMaterialMateriale | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | |
| FeetsFüßePiedi | Adjustable SpykesRegelbare SpykesSpykes regolabili | Adjustable SpykesRegelbare SpykesSpykes regolabili | Adjustable SpykesRegelbare SpykesSpykes regolabili | |
| DimensionsMaßenDimensioni | 1160 x 450 x 620 mm 45,75 x 17,75 x 24,35 in | 1112 x 332 x 455 mm 43,75 x 13 x 18 in | 990 x 300 x 355 mm 39 x 11,75 x 14 in | |
| WeightGewichtPeso | 60 kg | 45 kg | 25 kg | |
| Packaging dimensionsVerpackungsmaßenDimensioni imballate | 130 x 60 x 38 cm | 120 x 45 x 40 | ||
| Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone | 1 | 1 | 1 | |
| Packaging weightVerpackungsgewichtPeso imballate | 70 kg | 55 kg | 30 kg | |
| Center LoudspeakersCenter LautsprecherDiffusori centrali: | Genuin CS 2 - Twin | Genuin CS 2 - Twin | Center 25 | |
| Center 25 | Center 25 | Center 20 | ||
| Center 20 | Center 17 | |||
Note:
In our workshop we can offer true-wood veneers.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
News about the Genuin FS 1 MK 2
14 Apr 2018
Klangschloss Greifensee
22 Apr 2017
Milano HiFi presentation of the Genuin FS 1 MK 2
24 Mar 2017
Blumenhofer at Sambs HiFi
3 Mar 2017
Vienna Vinyl
3 Dec 2016
Il Galà di Spinelli - Milano

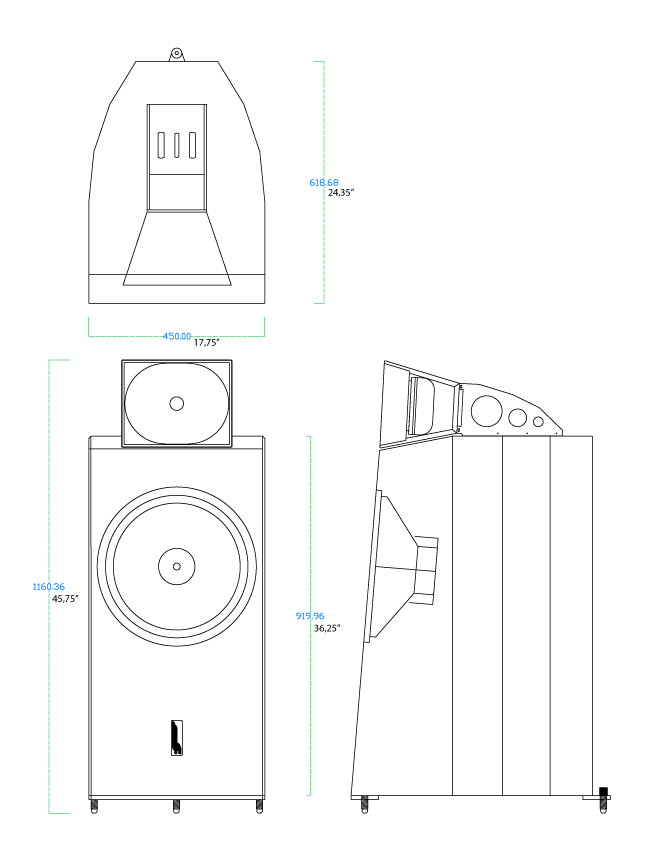

Dimensions
