Beyond standard dimensions: the concept of "2-ways with horn" reaches its fulfillnes.

Jenseits klasssischer Dimensionen: das Konzept "2-Wege mit Horn" findet seine ultimative Vollendung.

Al di là delle dimensioni: il concetto di "2-vie con tromba" raggiunge la completezza


Alt image
Blumenhofer Acoustics Wiki
Which is the horizon of a 2-Ways Loudspeaker?

We decided to develop something that pushes this horizon beyond imaginable. The concept of horn and 2 way was what we decided to push to the limit. We set ourselves no constraints for dimensions.

There have been several obstacles along this way and the prove that we mastered them is that the name Blumenhofer is on the Wiki.

The highlight of the loudspeaker is its absolute dynamic and finesse in the reproduction. Its complete sound stage and presentation. The feelings that it is able to deliver and evoke.
Wie groß ist der Horizont mit einem 2-Wege Lautsprecherbox?

Wir haben beschlossen etwas zu entwickeln, das diesen Horizont ungeahnt erweitert. Das Konzept von Horn und 2 Wege hat sich dafür angeboten, übertroffen zu werden. Wir haben uns keine Einschränkungen für die Dimensionen gesetzt.

Es gab viele Hürden auf diesem Weg. Dafür steht der Namen Blumenhofer, das diese Hürden gemeistert wurden.

Der Höhepunkt dieser Lautsprecherbox ist die extraordinäre Dynamik und absolute Feinzeichnung in der Wiedergabe. Die Größe der Bühne. Die Gefühle, die sie liefern und hervorheben kann.
Qual'è l'orizzonte di una diffusore a 2 vie?

Abbiamo deciso di sviluppare qualcosa che ampli in modo inaspettato questo orizzonte. Il progetto di un diffusore a 2 vie caricato a tromba è stato il naturale punto di partenza. Abbiamo deciso di non porci limiti dimensioni.

Ci si sono presentati tanti ostacoli su questo cammino e molti sono stati superati. La prova è che abbiamo messo il nome Blumenhofer su questo diffusore.

Il punto saliente di questo diffusore è la notevolissima dinamica e l'assoluta finezza nella riproduzione. La completezza, il dettaglio e la precisione della sua presentazione musicale. Le sensazioni che è capace di proporre ed evocare.

Words of the press

Pressestimmen

Dice la stampa

Music Emotion - Article


Goose bumps on both arms and shivers run down my back.
Bass registers remind me of an angry grizzly bear.
The sound stage is somewhere before you, certainly not coming from a pair of speakers, it feels and sounds like a bunch of speakers and every voice or instrument has its own identifiable position.
The performance is very direct and micro details flow freely from the mouth of the horns. Whichever way you look at the system, it destroys many sacred cows, not just a bit, more like in an earthquake.
Music is no longer reproduced; it is played at the very spot.

Music Emotion - Article


Gänsehaut auf beiden Armen und meinem ganzen Rücken entlang.
Die Bässe haben mich an einen wütender Grizzly Bär erinnert
Die Bühne ist irgendwo vor Dir, mit Sicherheit quillt sie nicht aus ein Paar Lautsprechern, es fühlt sich wie eine Wand und jedes Instrument und jede Stimme hat ihre eigene bestimmte Position.
Die Performance it sehr direkt und Mikrodetails fließen frei aus der Mündung der Hörner. Egal wie man dieses System betrachtet: es zerstört viele heilige Kühe, nicht nur ein wenig aber ungefähr wie ein Erdbeben.
Musik ist nicht mehr reproduziert: sie wird auf der Stelle gespielt.

Music Emotion - Article


Pelle d'oca lungo entrambe le braccia e tutta la mia schiena.
I registri del basso mi hanno ricordato un orso Grizzly
Il palcoscenico era da qualche parte davanti a Te, ma di sicuro non era il prodotto di un paio di diffusori, sembrava una parete di diffusori in cui ogni strumento ed ogni voce aveva la sua posizione perfettamente identificabile.
La presentazione è estremamente diretta ed i microdettagli scorrevano liberamente dalla bocca delle trombe. Indifferente da che parte si guardi a questo sistema: distrugge tante vacche sacre, non solo un pochino, ma come un terremoto.
La musica non è più riprodotta: viene suonata sul posto.

Specifications of the Wiki

Spezifikationen der Wiki

Specifiche della Wiki

High efficiency
2-Ways loudspeaker

Cabinet


...I have ho clue how to define the woodwork of the Wiki 'Cabinet'...
• Front midrange horn
• Back loaded bass-horn
• 25mm Birch plywood
• Resonance and flow optimized bass-horn
• External crossover
• Modular construction
• High complex structure

Components


• 2” Compression Driver with Beryllium membrane
• 38cm (16") Paper Woofer
• Gold plated tellurium copper terminals

Features


• Bi-wiring- / Bi-amping -terminals
Time alignment
• Flat impedance curve
Tube Friendly
• 10 years Warranty
Hohes Wirkungsgrad
2-Wege Lautsprecher

Gehäuse


...ich habe ein Problem das Holzwerk der Wiki 'Gehäuse' zu definieren...
• Vorderen Horn Aufsatz für Mittelton
• Back loaded Bass-horn
• 25mm Birke-Multiplex-Echtholz
• Resonanz- und strömungsoptimierter Basshorn
• Externe Weiche
• Modulare Konstruktion
• Hochkomplexe Struktur

Komponenten


• 2” Kompressionstreiber mit Beryllium Membrane
• 38cm (16") Papier Woofer
• Vergoldete Tellurium Kupfer Anschlüsse

Eigenschaften


• Bi-wiring- / Bi-amping - Anschlüsse
Laufzeitkorrektur
• Flache Impedanzkurve
Rörenfreundlich
• 10 Jahre Garantie
Alta efficienza
• Diffusore a 2 vie

Cabinet


...ho un problema a definire 'Cabinet' la struttura della Wiki...
• Tromba frontale dei mediobassi
• Tromba del basso a caricamento posteriore
• Legno multistrato di betulla da 25mm
• Tromba del basso ottimizzata per flusso e risonanza
• Filtro esterno
• Costruzione modulare
• Struttura autoportante irrobustita

Componenti


• Driver a compressione da 2" pollici con membrana in berillio
• Woofer in carta da 38cm (16")
• Connettori in rame tellurio placcato oro

Proprietà


• Predisposizione per Bi-Wiring e Bi-Amping
Allineamento temporale
• Curva d'impedenza piatta
Ideale per valvole
• 10 anni di garanzia

Technical data of the Wiki

Technische Daten der Wiki

Dati tecnici della Wiki

Gran Gioia MK 2Gran Gioia 2x10"
MaterialMaterialMaterialeBirch plywoodBirke MultiplexMultistrato di betullaBirch plywoodBirke MultiplexMultistrato di betulla
Horn MaterialHorn MaterialMateriale della trombaHDF-ComplexHDF-Complex
ThicknessMaterialdickeSpessore19mm / 3/4"19mm / 3/4"
Internal BracingVerstrebungIrrigidimentoStructural bracing interactionStrukturelle interaktionInterazione strutturaleStructural bracing interactionStrukturelle interaktionInterazione strutturale
Cross over chamberKammer für FrequenzweicheVolume separato per filtro-Yes
Frequency rangeFrequenzgangRisposta in frequenza35Hz - 20kHz ± 2dB35Hz - 20kHz ± 2dB
WooferTiefmitteltönerWoofer380mm / 15"2x 250mm / 10"
MaterialMaterialMaterialePaperPapierCartaPaperPapierCarta
Bass CabinetBass GehäuseCabinet dei bassiHornHornTrombaBass ReflexHornHornTrombaBass Reflex
PortingBass ReflexCanale ReflexFloorZum BodenA pavimentoFloorZum BodenA pavimento
Horn loadHorn RichtungCarico a trombaFrontNach vorneAnterioreFrontNach vorneAnteriore
Cross over frequencyÜbergangsfrequenzFrequenza di taglio850 Hz750 Hz
MidhighMittelhochtönerMedioaltiCompression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressione
Horn ThroatHornDiametro tromba1,4"1,4"
Membrane dimensionsMembranendimensionDimensione Membrana75mm / 3"75mm / 3"
MaterialMaterialMateriale TitaniumTitanTitanio TitaniumTitanTitanio
Max power input (RMS)Belastbarkeit (RMS)Potenza massima (RMS)150 W RMS300 W RMS
EfficiencyWirkungsgradEfficienza100 dB95 dB
ImpedanceImpedanzImpedenza8 Ohm4 Ohm
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenzaYesJaSiYesJaSi
TerminalAnschlussfeldTerminaliBi-AmpingBi-Amping
MaterialMaterialMaterialeGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oroGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro
FeetsFüßePiediAdjustable SpykesRegelbare SpykesSpykes regolabiliAdjustable SpykesRegelbare SpykesSpykes regolabili
DimensionsMaßenDimensioni1335 x 550 x 840 mm1332 x 482 x 536
WeightGewichtPeso100 kg60kg
Packaging DimensionsVerpackungs MaßenDimensioni imballate
Gross WeightGewicht verpacktPeso imballate140kg90kg

Dimensions of the Wiki

Abmessungen der Wiki

Ingombri della Wiki

Options of the Wiki

Optionen der Wiki

Opzioni della Wiki

In our workshop we can offer all true-wood veneers.
Standard are Walnut and Cherry.
As an option is matt lacquering possible as well.
In unserer hauseigenen Schreinerei können wir sämtliche Echtholzfurniere anbieten.
Standardfurniere sind Walnuss und Kirsche.
Optional ist auch eine Seidenmatt Lackierung möglich.
Nella nostra falegnameria possiamo produrre qualunque tipo di finitura superficiale in nobilitato di autentico legno.
Standard sono Noce e Ciliegio.
È anche possibile avere anche una verniciatura superficiale opaca.

Picture Gallery of the Wiki

Fotos der Wiki

Immagini della Wiki

Note:

Anmerkung:

Nota:

Note:

Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Holz ist ein Naturprodukt und kann durch Wuchsgebiet, Dichte und Lagerung unterschiedliche Farbtöne, Maserungen und Strukturen aufweisen. Struktur sowie Farbdifferenzen sind daher kein Reklamationsgrund. Änderungen an Holzarten und Oberflächen vorbehalten!
Il legno è un prodotto naturale ed il suo colore e la struttura delle sue venature dipendono da tanti fattori e dalle zone di crescita. Quindi variazioni ed irregolarità della superficie non sono da considerarsi difetti ai fini di un reclamo.

Reviews
of the Wiki

Reviews
der Wiki

Tests
della Wiki


    Alt image

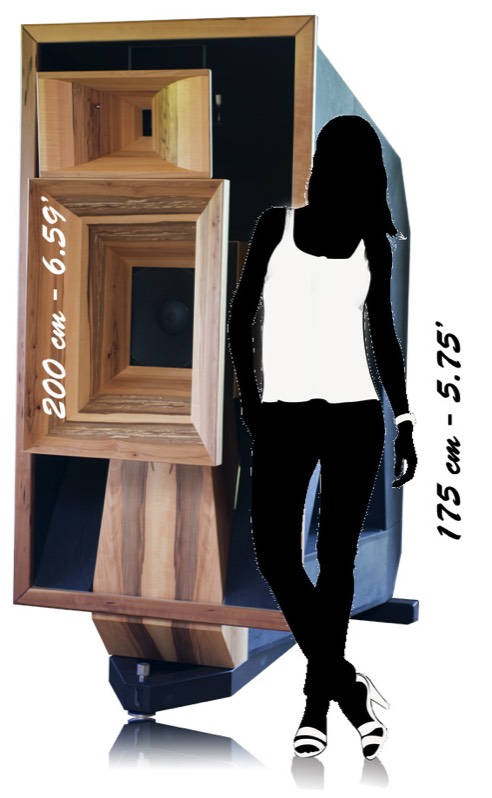

    Relative Dimensions Wiki
