Genuin FS 3 MK 2

Our classic reborne
Now with 10”-25cm woofer and harmonic construction

Die Wiedergeburt unseres Klassikers
Jetzt mit 25cm woofer und harmonische Konstruktion

La rinascita del nostro classico
Adesso con un woofer da 25 e costruzione armonica


Alt image

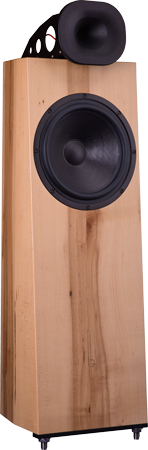

Blumenhofer Acoustics Genuin FS 3 Walnut
Alt image
Blumenhofer Acoustics Genuin FS 3 Walnut
After 10 years our Genuin FS 3 needed overhauling: it was missing the new technologies. We wanted to introduce the harmonic constructions, and… our new driver.
The Genuin FS 3 MK 2 now bears much bigger components, we developed extra for it a new 10”-25cm paper woofer and the compression driver shows as well new membranes and a brand new horn, developed on purposes to match the compression driver behind it and the bigger woofer.
It is faster, it goes deeper, it is even more friendly to all kind of power amplifiers.
After 10 years our Genuin FS 3 needed overhauling: it was missing the new technologies. We wanted to introduce the harmonic constructions, and… our new driver.
The Genuin FS 3 MK 2 now bears much bigger components, we developed extra for it a new 10”-25cm paper woofer and the compression driver shows as well new membranes and a brand new horn, developed on purposes to match the compression driver behind it and the bigger woofer.
It is faster, it goes deeper, it is even more friendly to all kind of power amplifiers.
After 10 years our Genuin FS 3 needed overhauling: it was missing the new technologies. We wanted to introduce the harmonic constructions, and… our new driver.
The Genuin FS 3 MK 2 now bears much bigger components, we developed extra for it a new 10”-25cm paper woofer and the compression driver shows as well new membranes and a brand new horn, developed on purposes to match the compression driver behind it and the bigger woofer.
It is faster, it goes deeper, it is even more friendly to all kind of power amplifiers.

Specifications of the Genuin FS 3 MK 2

Spezifikationen der Genuin FS 3 MK 2

Specifiche della Genuin FS 3 MK 2

High efficiency
2-Ways loudspeaker

Cabinet


Floor ported Bass-Reflex
• 18mm Composite Wood
Harmonic construction
• Resonance and flow optimized bass reflex tunnel

Components


• 1” Compression Driver with Mylar membrane
• 10” - 25cm Paper-Woofer
• Gold plated tellurium copper terminals

Features


• Bi-wiring- / Bi-amping -terminals
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
Tube Friendly
Time alignment to the listening spot
• 10 years Warranty
Hohes Wirkungsgrad
2-Wege Lautsprecher

Gehäuse


• Zum Boden ausgerichtete Bass Reflex Abstimmung
• 18mm Composite Holz
Harmonische Konstruktion
• Resonanz- und strömungsoptimierter Bassreflex-Tunnel

Komponenten


• 1” Kompressionstreiber mit Mylarmembran
• 10” - 25cm Papier-Tieftöner
• Vergoldete Tellurium Kupfer Anschlüsse

Eigenschaften


• Bi-wiring- / Bi-amping - Anschlüsse
• Schaltbare Impedanz-Linearisierung
• Flache Impedanzkurve
Rörenfreundlich
Auf dem Hörplatz justierbar
• 10 Jahre Garantie
Alta efficienza
• Diffusore a 2 vie

Cabinet


• Cabinet con bass reflex a pavimento
• Legno composito da 18mm
• Canale di bass reflex ottimizzato per flusso e risonanza

Componenti


• Driver a compressione da 1 pollice con membrana in mylar
• Woofer da 25cm (10”) in carta
• Connettori in rame tellurio placcato oro

Proprietà


• Predisposizione per Bi-Wiring e Bi-Amping
Linearizzazione d’impedenza per il punto di cross over
• Curva d'impedenza piatta
Ideale per valvole
• 10 anni di garanzia

Technical data of the Genuin FS 3 MK 2

Technische Daten der Genuin FS 3 MK 2

Dati tecnici della Genuin FS 3 MK 2

Genuin FS 1 MK 2Genuin FS 2Genuin FS 3 MK 2
MaterialMaterialMateriale:Birch plywoodBirke MultiplexMultistrato di betullaBirch plywoodBirke MultiplexMultistrato di betullaComposite WoodKomposites HolzLegno composito
ThicknessMaterialdickeSpessore:18mm / 0,75"18mm / 0,75"18mm / 0,75"
Internal BracingVerstrebungIrrigidimento:Structural bracing interactionStrukturelle interaktionInterazione strutturaleStructural bracing interactionStrukturelle interaktionInterazione strutturaleStructural bracing interactionStrukturelle interaktionInterazione strutturale
Cross over chamberKammer für FrequenzweicheVolume separato per filtro:NoNoNo
Frequency rangeFrequenzgangRisposta in frequenza:36Hz - 20kHz ± 2dB36Hz - 20kHz ± 2dB40Hz - 20kHz ± 2dB
Bass CabinetBass GehäuseCabinet dei bassi:Harmonic
Bass Reflex
Harmonic
Bass Reflex
Harmonic
Bass Reflex
PortingBass ReflexCanaleFloorZum BodenA pavimentoFloorZum BodenA pavimentoFloorZum BodenA pavimento
WooferTiefmitteltönerWoofer:380mm / 16"300mm / 12"250mm / 10"
MaterialMaterialMateriale:PaperPapierCartaPaperPapierCartaPaperPapierCarta
Cross over frequencyÜbergangsfrequenzFrequenza di taglio:850 Hz1150 Hz1200 Hz
MidhighMittelhochtönerMedioalti:Compression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressione
Horn ThroatHornDiametro tromba:1,4"1,4"1"
Membrane dimensionsMembranendimensionDimensione Membrana:75mm / 3"75mm / 3"44mm / 1,75"
MaterialMaterialMateriale: TitaniumTitanTitanio TitaniumTitanTitanioMylar
Max power inputBelastbarkeitPotenza massima (RMS):150 W RMS150 W RMS150 W RMS
EfficiencyWirkungsgradEfficienza:96 dB94 dB92 dB
ImpedanceImpedanzImpedenza:8 Ohm8 Ohm8 Ohm
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza:YesJaSiYesJaSiYesJaSi
TerminalAnschlussfeldTerminaliBi-AmpingBi-AmpingBi-Amping
MaterialMaterialMateriale:Gold plated
tellurium copper
Vergoldetes tellurium KupferRame tellurio placcato oro
Gold plated
tellurium copper
Vergoldetes tellurium KupferRame tellurio placcato oro
Gold plated
tellurium copper
Vergoldetes tellurium KupferRame tellurio placcato oro
FeetsFüßePiedi:Adjustable SpykesRegelbare SpykesSpykes regolabiliAdjustable SpykesRegelbare SpykesSpykes regolabiliAdjustable SpykesRegelbare SpykesSpykes regolabili
DimensionsMaßenDimensioni:1160 x 450 x 620 mm
45,75 x 17,75 x 24,35 in
1112 x 332 x 455 mm
43,75 x 13 x 18 in
990 x 300 x 355 mm
39 x 11,75 x 14 in
WeightGewichtPeso:60 kg45 kg25 kg
Packaging dimensionsVerpackungsmaßenDimensioni imballate:130 x 60 x 38 cm120 x 45 x 40
Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone:111
Packaging weightVerpackungsgewichtPeso imballate:70 kg55 kg30 kg
Center LoudspeakersCenter LautsprecherDiffusori centrali:Genuin CS 2
Center 20Center 20Center 20
Center 17Center 17

Dimensions of the Genuin FS 3 MK 2

Abmessungen der Genuin FS 3 MK 2

Ingombri della Genuin FS 3 MK 2

Options of the Genuin FS 3 MK 2

Optionen der Genuin FS 3 MK 2

Opzioni della Genuin FS 3 MK 2

In our workshop we can offer all true-wood veneers.
Standard are Walnut and Cherry.
Here You can find some non exhaustive samples of the veneers.
As an option is matt lacquering possible as well.
In unserer hauseigenen Schreinerei können wir sämtliche Echtholzfurniere anbieten.
Standardfurniere sind Walnuss und Kirsche.
Hier gibt es ein Paar Beispiele der möglichen Furniere.
Optional ist auch eine Seidenmatt Lackierung möglich.
Nella nostra falegnameria possiamo produrre qualunque tipo di finitura superficiale in nobilitato di autentico legno.
Standard sono Noce e Ciliegio.
In questa pagina è possibile vedere alcuni esempi di nobilitature.
È anche possibile avere anche una verniciatura superficiale opaca.

Picture Gallery of the Genuin FS 3 MK 2

Fotos der Genuin FS 3 MK 2

Immagini della Genuin FS 3 MK 2

Home Cinema Components for the Genuin FS 3 MK 2

Heimkino Komponenten für die Genuin FS 3 MK 2

Componenti Home Cinema per la Genuin FS 3 MK 2

Note:

Anmerkung:

Nota:

Note:

Anmerkung:

Nota:

Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Holz ist ein Naturprodukt und kann durch Wuchsgebiet, Dichte und Lagerung unterschiedliche Farbtöne, Maserungen und Strukturen aufweisen. Struktur sowie Farbdifferenzen sind daher kein Reklamationsgrund. Änderungen an Holzarten und Oberflächen vorbehalten!
Il legno è un prodotto naturale ed il suo colore e la struttura delle sue venature dipendono da tanti fattori e dalle zone di crescita. Quindi variazioni ed irregolarità della superficie non sono da considerarsi difetti ai fini di un reclamo.
Alt image

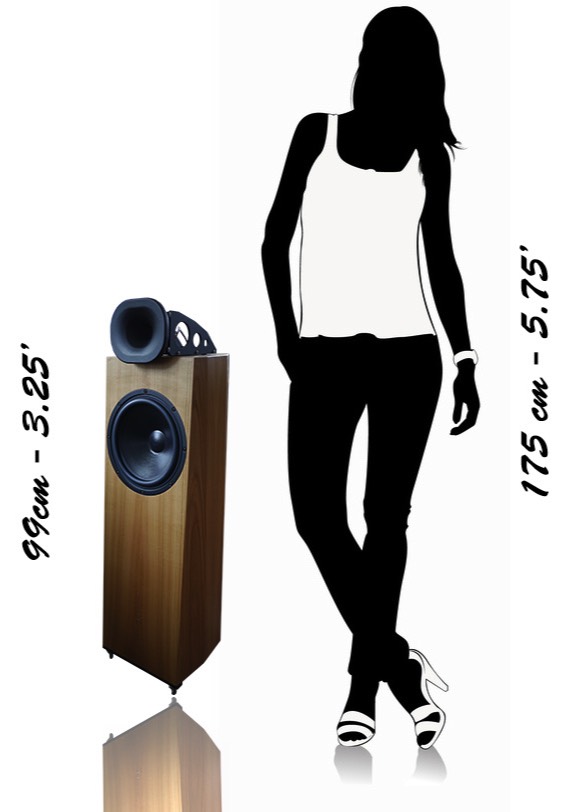

Relative Dimensions Genuin FS 3
