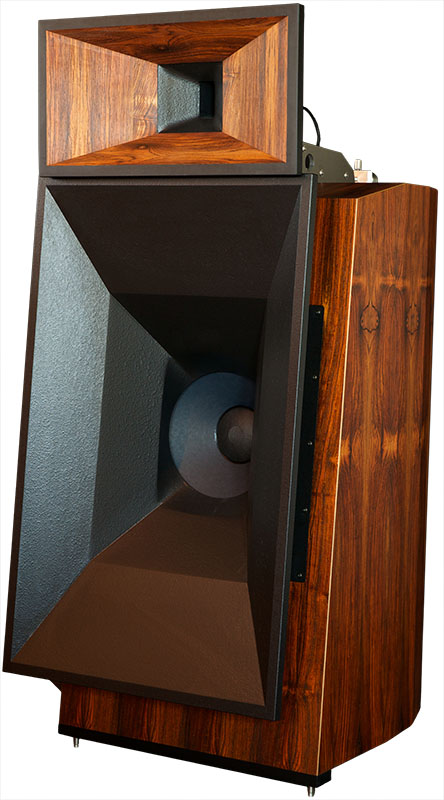

Gran Gioia MK 2

One step further: our new technologies to be nearer to real


Alt image
Stacks Image 8299
The Bass Phase Plug, the new horn throat construction, the further simplification, the new micrometrical regulation of the horn shift.
This is about the technological steps further.
In terms of music, each technological step further is a step nearer to reality.

Specifications

High efficiency
2-Ways loudspeaker

Cabinet


• Front midrange horn
• New Phase Plug technology
Floor ported Bass-Reflex
• 19mm HDF-Composite wood
• Resonance and flow optimised bass reflex tunnel
Harmonic construction

Components


• 1.4” Compression Driver with Titan membrane
• 38cm (16") Paper Woofer
• Gold plated tellurium copper terminals

Features


• 2-1dB-steps level adjustment for the horn
• Bi-wiring- / Bi-amping -terminals
• Micrometrical regulation for Time alignment
• Switchable impedance linearization for the crossover frequency
• Flat impedance curve
Tube Friendly
• 10 years Warranty

Technical Data

WikiConcert XGran Gioia MK 2
MaterialMaterialMateriale:Birch plywoodBirke MultiplexMultistrato di betullaBirch plywoodBirke MultiplexMultistrato di betullaHDF-Complex
ThicknessMaterialdickeSpessore:25mm / 1"25mm / 1"19mm / 3/4"
Internal BracingVerstrebungIrrigidimento:Structural bracing interactionStrukturelle interaktionInterazione strutturaleStructural bracing interactionStrukturelle interaktionInterazione strutturaleStructural bracing interactionStrukturelle interaktionInterazione strutturale
Cross over chamberKammer für FrequenzweicheVolume separato per filtro:YesJaSiOpen air CrossoverOffene WeicheFiltro in aria-
Frequency rangeFrequenzgangRisposta in frequenza:30Hz - 20kHz ± 2dB (*)30Hz - 20kHz ± 2dB (*)35Hz - 20kHz ± 2dB
WooferTiefmitteltönerWoofer:380mm / 15"2x 380mm / 15"380mm / 15"
MaterialMaterialMateriale:PaperPapierCartaPaperPapierCartaPaperPapierCarta
Bass CabinetBass GehäuseCabinet dei bassi:HornHornTrombaHornHornTromba in
Closed cabinetGeschlossenes GehäuseCassa chiusa
HornHornTromba
Bass Reflex
PortingBass ReflexCanale Reflex--FloorZum BodenA pavimento
Horn loadHorn RichtungCarico a trombaFront and backNach vorne und hintenAnteriore e posterioreFrontNach vorneAnterioreFrontNach vorneAnteriore
Cross over frequencyÜbergangsfrequenzFrequenza di taglio:800 Hz850 Hz850 Hz
MidhighMittelhochtönerMedioalti:Compression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressioneCompression driverKompressionstreiberDriver a compressione
Horn ThroatHornDiametro tromba:1,4"1,4"1,4"
Membrane dimensionsMembranendimensionDimensione Membrana:75mm / 3"75mm / 3"75mm / 3"
MaterialMaterialMateriale:BerillioBerilliumBerillyum TitaniumTitanTitanio TitaniumTitanTitanio
Max power inputBelastbarkeitPotenza massima (RMS):150 W RMS150 W RMS150 W RMS
EfficiencyWirkungsgradEfficienza:103 dB108 dB100 dB
ImpedanceImpedanzImpedenza:8 Ohm8 Ohm8 Ohm
Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza:not needednicht notwendignon necessarianot needednicht notwendignon necessariaYesJaSi
TerminalAnschlussfeldTerminaliBi-WiringBi-WiringBi-Wiring
MaterialMaterialMateriale:Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oroGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oroGold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro
FeetsFüßePiedi:Adjustable SpykesRegelbare SpykesSpykes regolabiliAdjustable SpykesRegelbare SpykesSpykes regolabiliAdjustable SpykesRegelbare SpykesSpykes regolabili
DimensionsMaßenDimensioni:--1335 x 550 x 840 mm
WeightGewichtPeso:300 kg250 kg100 kg

Dimensions

Options

In our workshop we can offer all true-wood veneers.
Standard are Walnut and Cherry.
As an option is matt lacquering possible as well.

The Gran Gioia is a special product and will be build only after confirmed order reflecting the special wishes of the customer.
Delivery time between 8 and 12 weeks, depending on the finishing.

Picture Gallery

Home Cinema Components

Note:

Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Alt image
Relative Dimensions Gran Gioia
