Tempesta Bookshelf
Compact, but not compact sound. Complete solution in condensed friendly cabinet.
In compact form, ideal to be closed in a bookshelf and disappear from view, but ideal for transferring the understatement of its power. It does not fear the comparison with other competitors, both for music and cinema
Specifications
• 2-Ways loudspeaker
• Rear ported Bass-Reflex
• 1" Compression Driver with Mylar membrane
• 17cm (6") Woofer with P2C® Membrane
• Single-wiring-terminals
• 10 years Warranty
• Rear ported Bass-Reflex
Components
• 1" Compression Driver with Mylar membrane
• 17cm (6") Woofer with P2C® Membrane
Features
• Single-wiring-terminals
• 10 years Warranty
Technical Data
| Genuin BKS | Tempesta BKS | Midi | Mini | |
|---|---|---|---|---|
| MaterialMaterialMateriale | Birch plywoodBirke MultiplexMultistrato di betulla | MDF | MDF | MDF |
| ThicknessMaterialdickeSpessore | 18mm / 0,75" | 19mm / 0,75" | 19mm / 0,75" | 19mm / 0,75" |
| Internal BracingVerstrebungIrrigidimento | Structural bracing interactionStrukturelle interaktionInterazione strutturale | No | No | No |
| Cross over chamberKammer für FrequenzweicheVolume separato per filtro | No | No | No | No |
| Frequency rangeFrequenzgangRisposta in frequenza | 50Hz - 20kHz ± 2dB | 50Hz - 20kHz ± 2dB | 60Hz - 20kHz ± 2dB | 60Hz - 20kHz ± 2dB |
| Bass CabinetBass GehäuseCabinet dei bassi | Harmonic Bass Reflex | Bass reflex | Bass reflex | Bass reflex |
| PortingBass ReflexCanale | FloorZum BodenA pavimento | RearNach hintenPosteriore | RearNach hintenPosteriore | RearNach hintenPosteriore |
| WooferTiefmitteltönerWoofer: | 200mm / 8" | 170mm / 6,5" | 130mm / 5" | 100mm / 4" |
| MaterialMaterialMateriale | Paper P2F® SandwichPapier P2F® SandwichCarta Sandwich P2F® | Peek-Carbon P2C® Sandwich | Peek-Carbon P2C® Sandwich | PaperPapierCarta |
| Cross over frequencyÜbergangsfrequenzFrequenza di taglio | 1200 Hz | 1800 Hz | 3000 Hz | 6000 Hz |
| MidhighMittelhochtönerMedioalti: | Compression driverKompressionstreiberDriver a compressione | Compression driverKompressionstreiberDriver a compressione | DomeKalotteCalotta | DomeKalotteCalotta |
| Horn ThroatHornDiametro tromba | 1" | 1" | - | - |
| Membrane dimensionsMembranendimensionDimensione Membrana | 44mm / 1,75" | 35mm / 1,4" | 28mm / 1,1" | 25mm / 1" |
| MaterialMaterialMateriale | Mylar | Mylar | SilkSeideSeta | SilkSeideSeta |
| Max power inputBelastbarkeitPotenza massima (RMS) | 150 W RMS | 100 W RMS | 80 W RMS | 60 W RMS |
| EfficiencyWirkungsgradEfficienza | 90dB | 90dB | 88 dB | 88dB |
| ImpedanceImpedanzImpedenza | 8 Ohm | 8 Ohm | 8 Ohm | 6 Ohm |
| Impedance linearizationImpedanzlinearisierungLinearizzazione d'impedenza | YesJaSi | No | No | No |
| TerminalAnschlussfeldTerminali | Bi-Amping | Single-Wiring | Single-Wiring | Single-Wiring |
| MaterialMaterialMateriale | Gold plated tellurium copperVergoldetes tellurium KupferRame tellurio placcato oro | Gold plated brassVergoldetes MessingOttone placcato oro | Gold plated brassVergoldetes MessingOttone placcato oro | Single-Wiring gold platedSingle-Wiring vergoldetSingle-Wiring placcato oro |
| FeetsFüßePiedi | Adjustable SpykesRegelbare SpykesSpykes regolabili | No | No | No |
| DimensionsMaßenDimensioni [mm] | 480 x 220 x 320 mm 19 x 8,5 x 12,5 in | 338 x 290 x 162 mm | 280 x140 x270 mm 11 x 5,5 x 10,5 in | |
| WeightGewichtPeso | 10,5 kg | 7 kg | 5 kg | |
| Packaging dimensionsVerpackungsmaßenDimensioni imballate | 69 x 43 x 36 cm | 48 x 48 x 44 cm | 45 x 45 x 42 cm | |
| Loudspeakers per cartonLautsprecher per KartonPezzi pro cartone | 2 | 2 | 2 | 2 |
| Packaging weightVerpackungsgewichtPeso imballate | 17 kg | 12 kg | ||
| Center LoudspeakersCenter LautsprecherDiffusori centrali: | Center 20 | Center 17 | - | - |
| Center 17 | Center 15 | - | - | |
| Standard VeneersStandard FurniereFiniture standard: | Walnut, Dark WalnutWalnuss, Dunkles WalnussNoce, Noce Scuro | |||
| Special VeneersSpezial FurniereFiniture speciali: | Black Walnut, on demandSchwarz Walnuss, auf AnfrageNoce Nero e su richiesta | |||
| Premium VeneersPremium FurniereFiniture premium: | On demandAuf AnfrageSu richiesta | |||
Note:
In our workshop we can offer true-wood veneers.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
Wood is a natural product and depending on several factors might have different color and structure. Color and structure variations of the surface are not to be considered flaws.
News
No posts found. Choose another category or date.

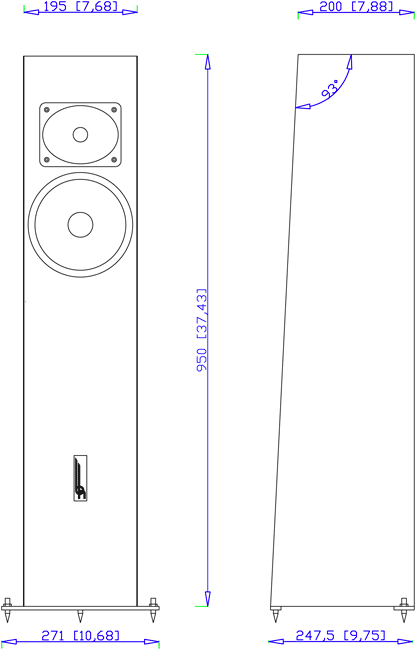

Dimensions
